Vivotek FD9367-HTV 2MP IR H.265 Outdoor Dome Ip Security Camera
MPN
FD9367-HTV
UPC
4712123678276
About this item
- 30 fps @ 1920x1080;
- 2.8 ~ 12 mm, Remote Focus, P-iris Lens;
- Smart Stream III to Optimize Bandwidth Efficiency;
- SNV (Supreme Night Visibility) for Low Light Conditions;
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments;
- IR Illuminators up to 30M with Smart IR II;
- 3D Noise Reduction for Low-light Conditions;
- Weather-proof IP66 and Vandal-proof IK10-rated Housing;
- Trend Micro IoT Security;
- VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package);

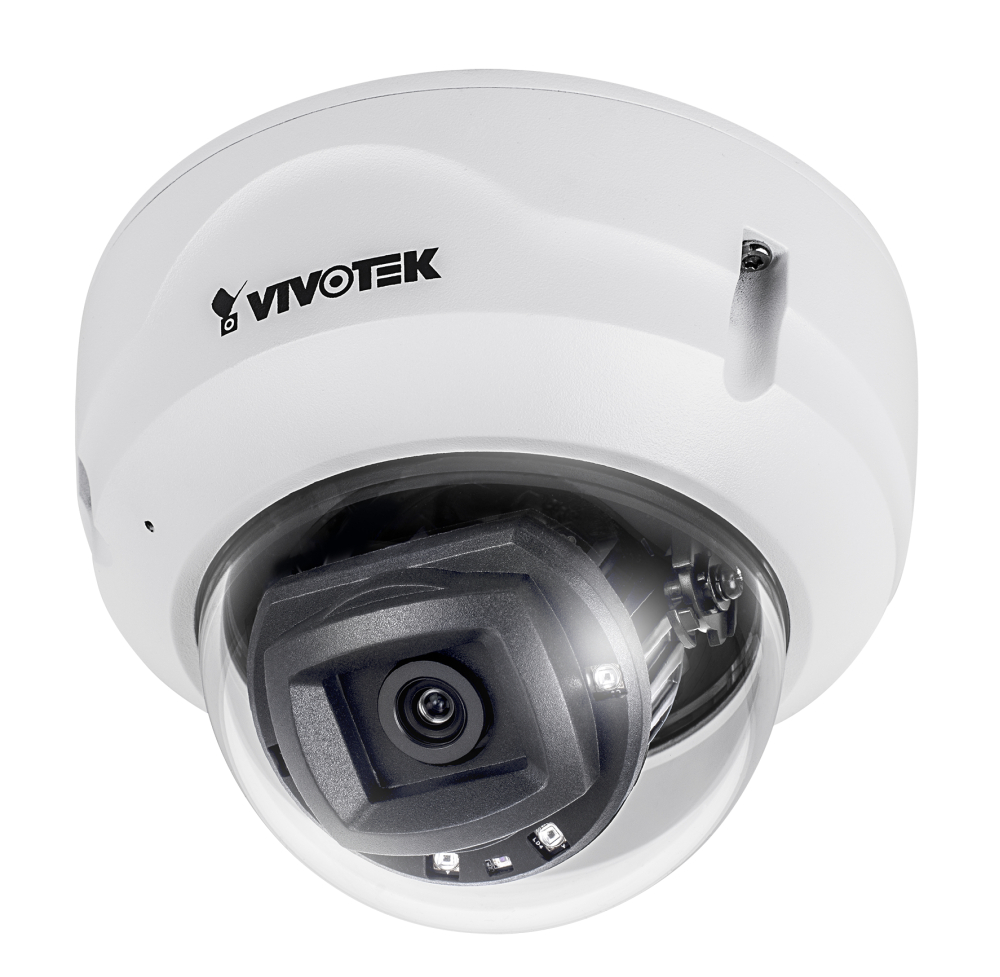

VIVOTEK FD9367-HTV is a weatherproof IR dome network professional camera with a 1920x1080 resolution. It has a full HD sensor and a 30 fps maximum frame rate
With the most updated VIVOTEK SNV and WDR Pro technology, the FD9367-HTV is capable of capturing the highest quality images in both low light and high contrast environments.
This security camera is ideal for outdoor surveillance 24/7.
It is also equipped with features that could protect your assets such as intruder detection (Vivotek active motion detection algorithm).
The FD9367-HTV also is the first surveillance camera with Smart IR II technology (30 m). Speed Dome technology from VIVOTEK cameras has a pronounced effect on image details.
The new continuous high-definition VIVOTEK FD9367-HTV is equipped with Smart Stream III technology and H.265 compression, providing powerful technology that can reduce bandwidth more than 90%, while maintaining excellent picture quality.
Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) enables customers to customize various applications for their own needs and usage scenarios.
Overview
The new FD9367-HTV is the most up to date professional outdoor IR dome network camera from VIVOTEK. It has got a full HD sensor capable of 1920x1080 resolution at 30 fps.
The most updated VIVOTEK SNV and WDR Pro technology ensures capturing the highest quality images in both low light and high contrast environments.
The FD9367-HTV also offers great night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the FD9367 IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots and increases the IR effective range up to 30 meters.
VIVOTEK's Smart Stream III technology and H.265 compression codec reduces bandwidth more than 90%.
The FD9367 is rated to IP66 and IK10.
Specifications
Performance
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Infrared (IR) cut-off filter |
Design
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Protection features | Vandal proof |
| IK code | IK10 |
| Weatherproof | |
| International Protection (IP) code | IP66 |
Video
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | |
| Flip & mirror | |
| Privacy masking | |
| Bit rate control | Constant Bit Rate (CBR) |
| Back Light Compensation (BLC) | |
| Highlight Compensation (HLC) | |
| Video streaming | |
| Smart IR | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Time stamp overlay | |
| Frame rate | 30 fps |
| Text caption overlay |
Camera
| Camera pan control | |
| Camera tilt control | |
| Minimum illumination | 0.001 lx |
| Viewing angle, horizontal | 97 \u00b0 |
| Viewing angle, vertical | 53 \u00b0 |
| Viewing angle, diagonal | 114 \u00b0 |
| Tilt angle range | 0 - 80 \u00b0 |
| Pan range | 0 - 350 \u00b0 |
| Angle of rotation | 180 \u00b0 |
| Camera shutter speed | 1/5 - 1/32000 s |
Image sensor
| Number of sensors | 1 |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8 " |
| Progressive scan |
Lens system
| Zoom capability | |
| Digital zoom | 48 x |
| Number of lenses | 1 |
| Maximum aperture number | 2.8 |
| Minimum aperture number | 1.4 |
| Focal length range (f-f) | 2.8 - 12 mm |
Security
| Video motion detection |
Storage
| Card reader integrated | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| ROM capacity | 512 MB |
| Flash memory | 128 MB |
Night vision
| Night vision | |
| Night vision distance | 30 m |
| LED type | IR |
Networking
| Ethernet LAN | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS |
| Quality of Service (QoS) support | |
| Streaming method | Multicast |
| Number of users | 10 user(s) |
Ports & interfaces
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in |
Audio
| Audio detection | |
| Built-in microphone | |
| Signal-to-Noise Ratio (SNR) | 58 dB |
| Audio system | 2-way |
| Audio formats supported | G.711, G.726 |
Weight & dimensions
| Width | 155 mm (6.05 ") |
| Depth | 155 mm (6.05 ") |
| Height | 104 mm (4.06 ") |
| Weight | 873 g (1.92 lbs) |
Power
| Power source type | DC, PoE |
| Power consumption (max) | 10 W |
Management features
| Remotely operated |
Certificates
| Certification | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
Operational conditions
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90 % |
System requirements
| Windows operating systems supported | Windows 7, Windows 8 |
Packaging content
| Manual | |
| Screws included | |
| Number of cameras | 1 |
