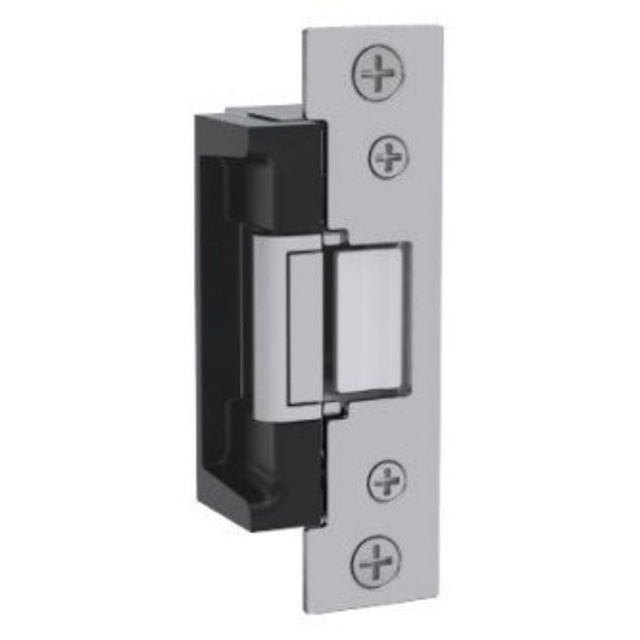

HES Complete Pac Satin stainless steel 1600-CS-630

The HES Complete Pac Satin stainless steel 1600-CS-630 is the most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks

It accepts up to a 1" deadbolt with increased vertical cavity spacing and will operate with any brand of cylinder or mortise lock that has a 4-7/8" striking plate. With improved vertical cavity spacing, it can accommodate up to a 1" deadbolt. By providing dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock, the HES Complete Pac Satin stainless steel 1600-CS-630 created a new industry standard.

Stainless steel construction

With interchangeable faceplates and accessories, the platform's modular architecture simplifies stocking and installation of HES Complete Pac Satin stainless steel 1600-CS-630. Because of the fully finished design available in eight finishes, the aesthetics of an electric strike are complementing to other surrounding door hardware and merge in with the opening for the first time.

Product Features:

• Tamper resistant;
• Static strength 1500 lbs;
• Dynamic strength 70 ft-lbs;
• Endurance 1,000,000 cycles;
• Field selectable fail safe/fail secure;
• Non-handed;
• Interchangeable faceplates and accessories;
• Field replaceable components;
• Fully finished faceplate, keeper, case and trim;
• Field adjustable integrated shim;
• Electrolynx connectors;
• Dual voltage 12/ 24 VDC/VAC;
