TESSCO 356602 network antenna 6 dBi Omni-directional antenna RP-SMA
Eligible for Free Shipping & Free Returns
MPN
M6060060MO1D3620O
UPC
888063566028
About this item
MIMO omni-directional Wi-Fi antenna, 2.4/5 GHz, 6 dBi, RP SMA Male, 134 mile/h
Ventev's TerraWave 2.4/5 GHz 6 dBi outdoor Multiple-Input and Multiple-Output (MIMO) omni-directional Wi-Fi antenna is designed to operate with any manufacturer's six-lead 802.11ac Waves I & II WLAN access points. The antenna's materials and construction makes it perfectly suited for warehouse, manufacturing, and outdoor environments where it must withstand moisture, wind, sun, and dust. The 6 dual-band leads deliver exceptional performance while simplifying connection to the access point. An L-bracket with mounting hardware is included to support mast and/or wall mounting.
Specifications
Performance
| Frequency band | 2.4-2.5/5.15-5.85 GHz |
| Networking standards | IEEE 802.11ac |
| Bandwidth note | 100/700 MHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360 \u00b0 |
| Vertical beam width (2.4 GHz) | 35 \u00b0 |
| Vertical beam width (5 GHz) | 25 \u00b0 |
| Antenna gain level (max) | 6 dBi |
Features
| Antenna type | Omni-directional antenna |
| Connector gender | Male connector |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1/2.0:1 |
| Survival wind speed | 215.7 km/h |
| Purpose | Indoor & outdoor |
| Mounting | Wall/Pole |
| Isolation | -15 dB |
| Product colour | White |
Power
| Power consumption (max) | 10 W |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Width | 149.9 mm (5.85 ") |
| Depth | 149.9 mm (5.85 ") |
| Height | 177.8 mm (6.93 ") |
| Weight | 1430 g (3.15 lbs) |
Packaging content
| Quantity | 1 |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
M6060060MO1D3620O by TESSCO
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-

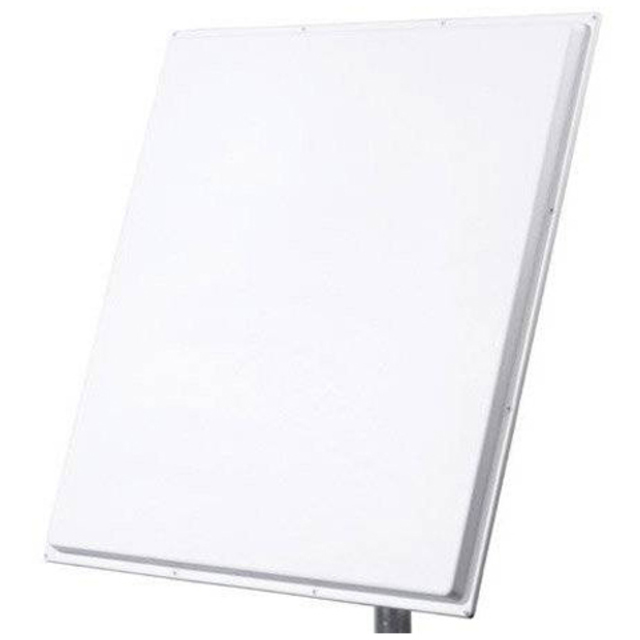

Aruba, a Hewlett Packard Enterprise companyAruba, a Hewlett Packard Enterprise company ANT-4x4-5314 network antenna 14 dBi MIMO directional antenna (JX988A)
