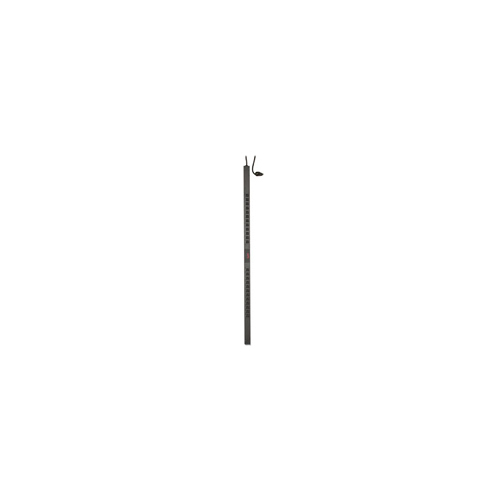

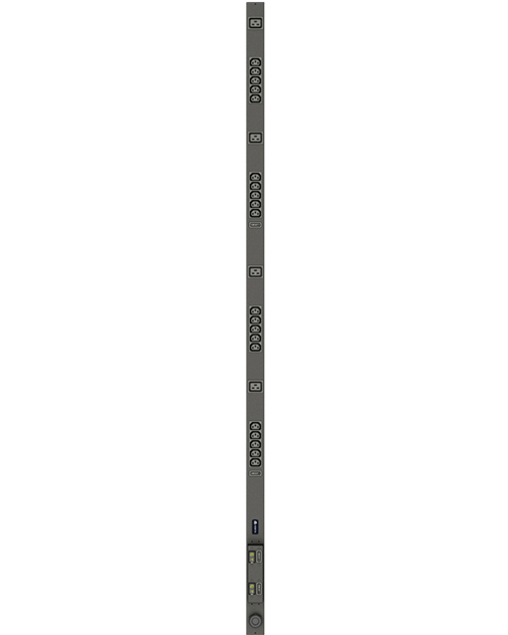

APC Basic Rack 4160VA power distribution unit (PDU)
Eligible for Free Shipping & Free Returns
MPN
AP7540
UPC
731304207931
About this item
Rack PDU, Basic, Zero U, 20A, 208V, (20)C13 & (4)C19
-Redundant Internal Power Supplies.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most
- in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Toolless mounting capability.
-Vertical mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most
- in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
Design
| Product colour | Black |
| Certification | cUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL |
Ports & interfaces
| Input connection type | NEMA L6-20P |
| Output connections | (20) IEC 320 C13 (4) IEC 320 C19 |
Ergonomics
| Cable length | 3.05 m |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Power
| Nominal input voltage | 208 V |
| AC input frequency | 50/60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 3328 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
Weight & dimensions
| Dimensions (WxDxH) | 56 x 44 x 1619 mm |
| Weight | 4860 g (10.71 lbs) |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
AP7540 by APC
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-
-
-

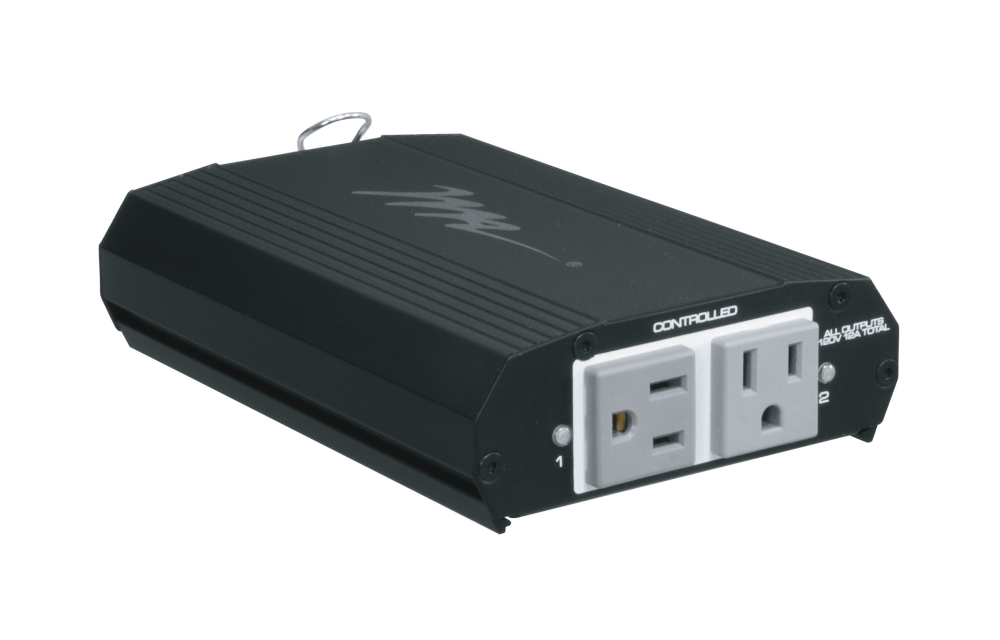

Middle Atlantic ProductsMiddle Atlantic Products RLNK-215 power distribution unit (PDU) (RLNK-215)
